The Decision Graph - How ContextOS Learns From Outcomes

The Decision Graph

The system does not learn from raw data. It learns from the chain of signals, decisions, actions, outcomes — and thread closures.

Method step: Loop. The meta-loop that makes the four-verb method sharper over time.

Most ML systems learn from labelled training sets. Operational systems do not have that luxury — operations is messy, the labels arrive late, and the right thing to do today depends on what worked yesterday.

ContextOS treats this as a feature, not a problem. Every signal raised, routed, and acted on becomes a row in the decision graph — a structured record of what the system saw, what it proposed, what a human did, and how it turned out.

The decision graph is what makes the platform self-improving.

The decision record

Every signal produces one decision record. Its structure looks like this:

{
  "decision_id": "dec_01HW...",
  "signal_id": "sig_01HW...",
  "raised_at": "2026-05-01T05:05:00Z",
  "signal_type": "heartbeat.attendance.overdue_5min",
  "thread_id": "thread.shift.sh_abc123",
  "thread_step": "step_awaiting_check_in",
  "stimulus_channel": "scheduled",
  "channel_trust": 1.00,

  "ai_proposal": {
    "action_type": "notify_persona",
    "personas": ["promoter", "store_manager"],
    "confidence": 0.92,
    "model_version": "conf-v3.4",
    "reasoning_inputs_ref": "ctx_chain_snapshot_01HW..."
  },

  "routing": {
    "surface": "automation",
    "threshold_used": 0.85,
    "band": "high_confidence"
  },

  "human_response": {
    "actor_id": "usr_...",
    "action": "accepted",  // accepted | edited | overridden | ignored | snoozed
    "responded_at": "2026-05-01T05:05:18Z",
    "edit_diff": null,
    "override_reason": null
  },

  "outcome": {
    "observed_at": "2026-05-01T05:42:11Z",
    "result": "promoter_arrived",  // resolved | escalated | timed_out | unresolved
    "downstream_signals": ["sig_attendance.checked_in"]
  }
}

One row per signal. Immutable. Joined to the rest of the substrate (events, stimuli, heartbeats) by thread_id.

The four feedback inputs the model learns from

Human response is not binary. Each shape of response carries different information about what to adjust.

Accepted

Human accepted the AI proposal as-is. Strongest positive signal. Reinforces the routing decision and the confidence band.

Edited

Human kept the proposal but adjusted it (different persona, different message, different timing). Tells the model the signal class is correct but a feature within it is miscalibrated.

Overridden

Human rejected the proposal entirely or did something different. Strongest negative signal — the model's confidence was overplaced. Lower the threshold for this signal class.

Ignored / Snoozed

Human did neither accept nor reject in time. Tells the model: this surface was wrong, the urgency was wrong, or the channel was wrong. Different remedy than override.

Thread closure as a learning input

Beyond the four human-response signals, every thread closure is itself a learning event. The terminal disposition — success, failure, or compensated — tells the model whether all the routing decisions taken across that thread's lifecycle added up to the right outcome.

Patterns of recurring failure-mode in a given thread type are especially valuable. If shift-execution threads in store X consistently close as no-show despite the engine routing reminders correctly, that's not a routing problem — it's a deeper signal worth surfacing to the operator. The decision graph aggregates thread closures by type, persona, store, time-of-day, and other features, and surfaces the patterns that matter.

This is how the system gets better at catching trouble before it becomes trouble: not just by sharpening individual routing decisions, but by learning which thread shapes deserve more attention earlier in their lifecycle.

The loop

Every link in the chain produces an immutable record.

  1. Signal raised — heartbeat or pattern crosses a threshold; a signal is created on a thread.
  2. AI proposes — model generates an action proposal with confidence and inputs.
  3. Routed by confidence — automation, action queue, follow-up calendar, or approval surface.
  4. Human acts (or doesn't) — accepted, edited, overridden, ignored, snoozed.
  5. Outcome observed — resolved, escalated, timed out, unresolved.
  6. Thread eventually closes — success, failure, or compensated terminal.
  7. Decision record written — one immutable row per link, joined by thread_id.
  8. Confidence model updated — thresholds, routing weights, channel preferences, channel trust shift.
  9. Next signal benefits — the next decision benefits from everything that came before it.

Replay is always possible. Audit is the default.

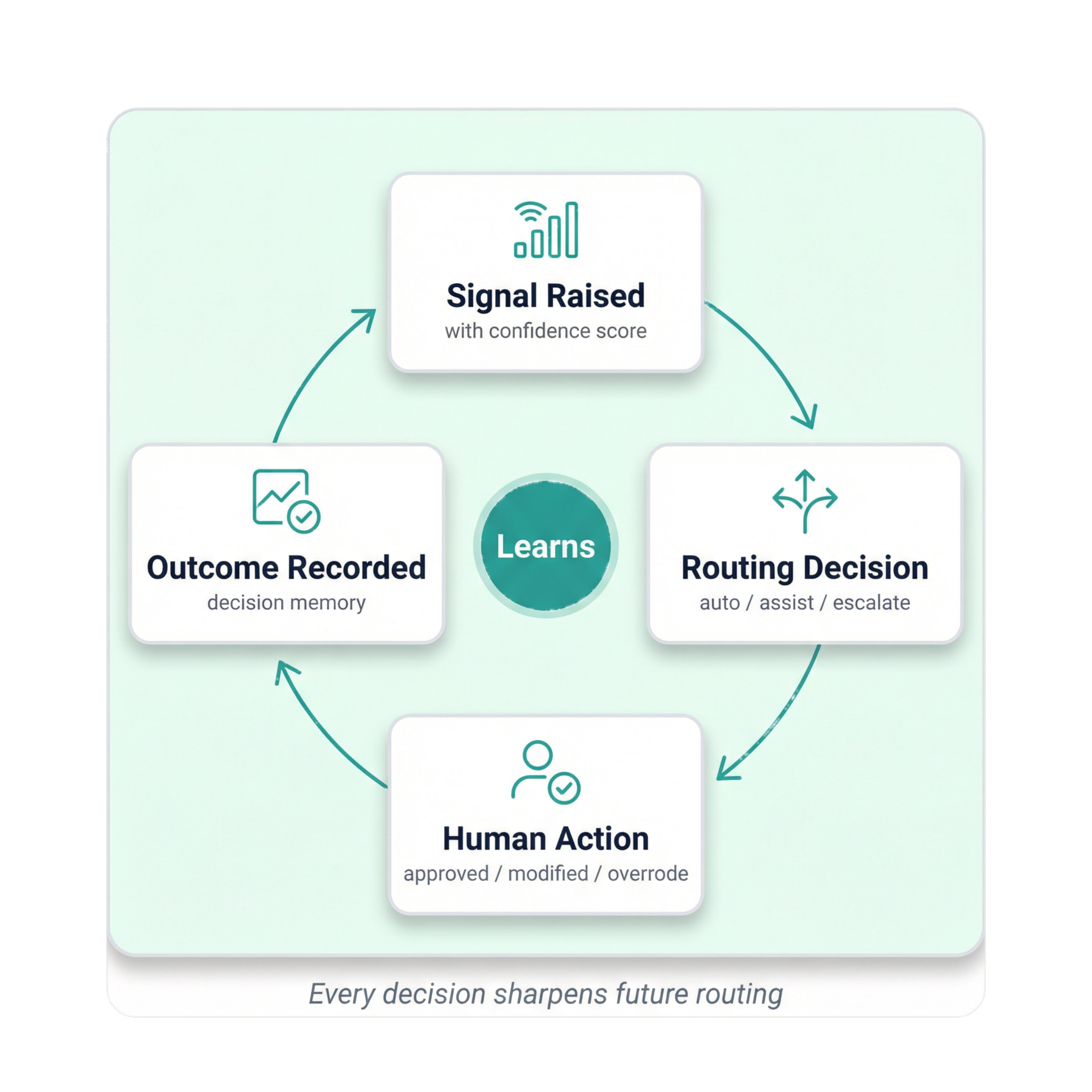

Feedback loop: Signal Raised → Routing Decision → Human Action → Outcome Recorded — every decision sharpens future routing

What gets sharper over time

The decision graph does not improve a single number. It improves several things in parallel.

Confidence sharpens

Patterns the system gets right see their thresholds raised — quietly automating cases that previously sat in the queue. Patterns the system gets wrong see thresholds lowered — surfacing those signals for human review more often.

Routing sharpens

The mix of which signals go to which surface adjusts based on outcome. If a signal type repeatedly arrives in the action queue and gets accepted without edit, it migrates toward automation. If it consistently gets overridden, it migrates toward approval.

Channel trust sharpens

Channels that reliably produce correct decisions see their base trust quietly raised. Channels that produce regular false-positives see their trust lowered. New channel integrations start at conservative defaults and earn trust by their record.

Locator sharpens

When the human-locator picks the wrong channel (no response, escalates) the user-channel preference function downgrades that channel for that user/signal-class combination.

Thread shape recognition sharpens

Patterns of thread shape that lead to closed-failure terminals get flagged earlier in their lifecycle on subsequent runs. The system learns not just what to do but which lifecycles deserve early attention.

What the decision graph is not

It is not a black box. Every record names the model version, the inputs it saw, and what the human did. Replay is always possible.

It is not a substitute for ground truth. The graph is operational truth — what the team did and what happened. For regulated decisions, ground-truth audits remain a separate process.

It is not auto-tuning beyond policy. Policy thresholds (e.g. "refunds always go to approval") are guardrails the graph cannot override.

Auditability and the data subject right

Because every AI proposal is logged with model version, confidence, channel trust, and inputs, ContextOS supports requests for human review of any AI decision affecting an individual.

The decision record is the audit artefact. Tenants in regulated jurisdictions configure retention windows accordingly.

Operations gets sharper because the system remembers what worked.
