Stimuli

Source-blind inputs that advance threads. Nine channels, one canonical shape.

Method step: Watch. What advances every live thread, regardless of where it came from.

The hidden assumption

Most operational systems assume one stream of truth: events arrive on their own, humans process them. That works when events are external (sensors, ERPs, webhooks) and humans pick from queues at their own pace.

But in real operations, the most important signals are often absences — the promoter who didn't check in by 09:15, the KYC that didn't get submitted, the brand approval sitting for three days, the invoice now overdue. Absence-as-signal cannot be detected from event streams alone.

Earlier drafts of ContextOS named three streams — events, interactions, heartbeats — as parallel logs. That was useful but incomplete. Real operations don't have three streams; they have many sources of stimulus, all arriving in the same canonical shape, playing one of three roles.

A stimulus is any input that may advance a thread.

It is source-blind: the engine doesn't care where it came from once it's normalized into the canonical envelope.

The three roles a stimulus plays

The "three streams" framing lives on as the three roles a stimulus plays on its target thread:

  • Fact — something happened. An order placed. A payment received. A check-in. A vitals reading logged. A homework submitted.
  • Intent — a human tried to make something happen. A button pressed. A form submitted. A swipe-to-confirm. Pressing "check in" is an intent; the actual check-in is a fact. They reconcile most of the time, and when they don't, that's a signal worth catching.
  • Absence — what should have happened by now didn't. The shift was supposed to start at 9. The medication was supposed to be administered at 14:00. The homework was supposed to be done by Wednesday. Heartbeats are the mechanism that makes absence detectable.

Roles are how we describe what a stimulus does to a thread. Channels are how we describe where it came from. Same stimulus, two questions, two answers.

The nine channels

Stimuli arrive through nine channels. Each has its own auth, dedup, latency, trust, and parsing concerns. Once normalized, all nine produce the same canonical envelope and feed the same downstream pipeline.

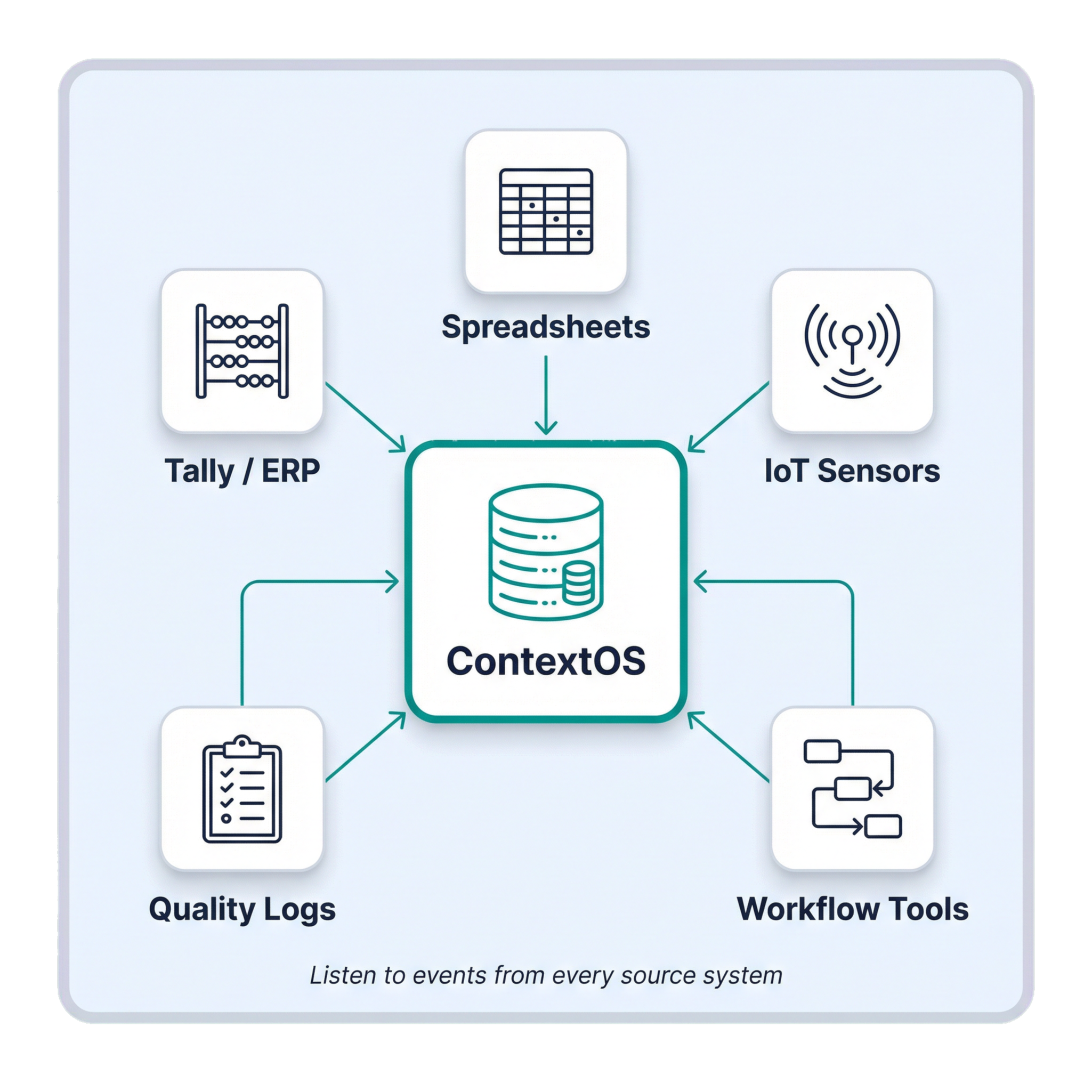

ContextOS extracting events from source systems — Tally/ERP, Spreadsheets, IoT Sensors, Quality Logs, Workflow Tools, all normalized into the canonical event envelope

1. user_action

An in-app human CTA. A promoter taps Check-in. An agency ops lead presses Lock Roster. A finance manager approves an invoice. The highest-volume channel; subject to fraud detection (selfie, geo, device fingerprint) and reconciliation against expected events (was the button press answered by the corresponding fact?).

2. webhook

Inbound HTTP from a 3rd-party system. ZATCA returns a stamp. Stripe confirms a settlement. Meta WhatsApp confirms delivery. ERP returns an acknowledgement. KYC vendor returns a result. Authenticated by HMAC signature, mTLS, or signed JWT.

3. email_inbound

A parsed inbound email. A brand replies "approve" to a report-ready email. A supplier confirms an order via reply. A complaint is forwarded with attachments. Authenticated by DKIM/SPF/DMARC pass; routed by a per-thread reply token in the address.

4. sms_inbound

A reply to an outbound SMS. A supervisor ACKs from a feature phone. Most useful where smartphone access isn't reliable. Authenticated through the SMS provider's webhook; matched to the thread by the reply token in the message.

5. external_log

A pull from a sibling internal system on a schedule. HR exports the daily roster. The biometric attendance device exports its punch log. The finance ERP exports invoice acknowledgements. Authenticated by service account or SSH key; schema-validated on read.

6. ai_action

An AI agent acted on a thread. The system auto-classifies a complaint. AI proposes a roster swap. AI flags a possible deepfake selfie. Every AI action carries its confidence score and the named features that fed it — the audit record is fully reproducible from input + model version + output.

7. scheduled

The engine fires a scheduled tick. Per-thread heartbeats are the most common case; cross-thread sweep heartbeats run on cron (dead-chain detection, dead-button detection, confidence calibration). The scheduler is part of the engine; identity is system.

8. app_internal

The system itself emits an event as a side-effect of normal business processing. A successful payment posting emits a payable-statement-generated event. A KYC import from external_log emits a downstream KYC event. Without this channel, in-app system events would be the one ambiguous case — this keeps the model uniform: every event has a stimulus_channel.

9. device

An IoT or sensor reading. Footfall counter at a store entrance. Smart-shelf weight delta. BLE beacon at a rendezvous point. Phase-4 only for most tenants; physical sensor data is classed by privacy class (a counter is low-PII; a face-detection camera is high-PII and intentionally out of scope for now).

The adapter contract

Each channel is implemented as a sealed adapter that does the same ten things. Once those ten things are done, the canonical event is indistinguishable from any other event downstream.

  1. Authenticate — verify the stimulus came from an allowed source
  2. Authorize — verify the source may act on the named tenant + thread
  3. Dedup — reject replays via channel-appropriate idempotency key
  4. Rate-limit — protect downstream from floods
  5. Parse — extract domain payload from the channel's native format
  6. Map — fill the canonical event envelope (event_type, thread_id, actor, etc.)
  7. Persist raw — write the original stimulus to the channel's append-only store
  8. Emit event — hand the canonical event to the enrichment pipeline
  9. Acknowledge — return the channel-appropriate ACK (HTTP 200, SMTP 250, etc.)
  10. Observe — emit operational metrics (count, latency, parse-failure, auth-failure, dedup-hit)

Adding a new channel is exactly that work, no more. The engine doesn't change. Existing pipelines don't change. The site builders don't have to learn a new model. New integrations slot in.

The canonical envelope

All stimuli, once normalized, carry the same envelope. The shape is structured, not text. Notifications are derived from this structure at delivery time, in the recipient's locale, by their channel constraints.

{
  "event_id": "evt_01HW...",
  "event_type": "attendance.checked_in",
  "stimulus_channel": "user_action",
  "stimulus_id": "stm_...",
  "thread_id": "thread.shift.sh_abc123",
  "thread_step": "step_awaiting_check_in",
  "thread_role": "progression",

  "occurred_at": "2026-05-01T13:42:11Z",
  "received_at": "2026-05-01T13:42:13Z",
  "correlation_id": "cor_...",
  "causation_id": "evt_...",

  "tenant_id": "...",
  "agency_id": "ag_...",
  "actor_type": "promoter | system | ai_agent | external_system | ...",
  "actor_id": "...",

  "locale": "en-AE",
  "tz": "Asia/Dubai",
  "pii_class": "none | low | high",

  "payload": { /* event-specific */ }
}

Three new envelope fields make the substrate explicit: stimulus_channel tells us which adapter produced the event, stimulus_id points back to the raw stimulus in the channel's append-only store, and thread_id/thread_step/thread_role make thread membership first-class.

Channel trust scoring

Not all stimuli are equally trustworthy. A government webhook signed via mTLS deserves higher base trust than a parsed inbound email from a personal domain. Channel trust feeds the confidence model directly.

ChannelDefault base trustNotes
user_action (operator role)0.95In-network operator with permissions
user_action (end-user)0.85Subject to fraud detection
webhook (gov mTLS)0.99Government-grade source
webhook (HMAC-signed)0.95Provider-grade
webhook (delivery callback)0.90Reliable but not authoritative
email_inbound (DKIM, brand domain)0.85Subject to free-text ambiguity
email_inbound (DKIM, personal)0.50Requires extra confirmation
sms_inbound (token-matched)0.80Numeric tokens only
external_log (registered ERP)0.90Schema-validated
ai_actionper-payloadConfidence carried in event
scheduled1.00The fact that it fired is certain
app_internal1.00Internal code is trusted
device (calibrated)per-deviceDrifts; recalibrated periodically

Trust scores feed routing. An invoice-collected event from webhook(payment_gw) may auto-close the invoicing thread. The same event from email_inbound requires human confirmation before the engine acts on it.

Stimuli need time-awareness too.

Meet heartbeats — the thread's own pulse, scheduled at chain-birth, fires when an expected stimulus is overdue.

Calm technology with teeth.
